Joma/Balkskor/Joist Hanger Type I

Joist Hanger Type I

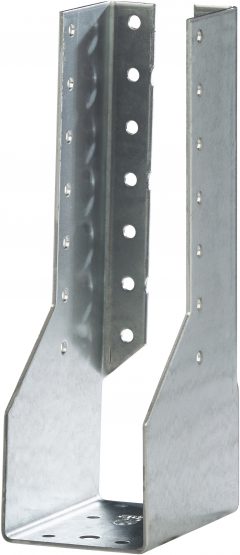

Jomas Joist Hangers are also available with inside flaps and then called Joist Hanger Type I. See picture.

Our Joist Hanger is equipped with both nail and bolt holes and can be mounted to wood, concrete, concrete or brick.

Material

2 mm galvanized steel plate

Spikhål: Ø 5,0 mm Bulthål: Ø 9,0 mm and 11,0 mm

Artikelnr.	Tjocklek	Höjd	Bredd	Vikt	Antal/förp.
For wooden beam 45

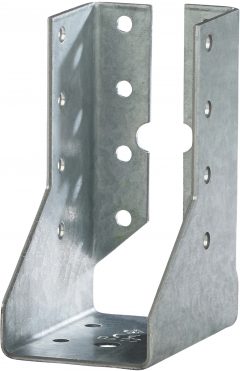

5245096I	2,0	96	45	0,24	50

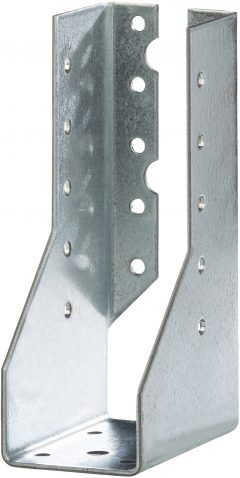

5245137I	2,0	137	45	0,35	50

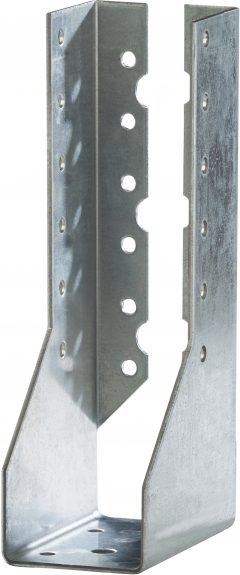

5245168I	2,0	168	45	0,42	50

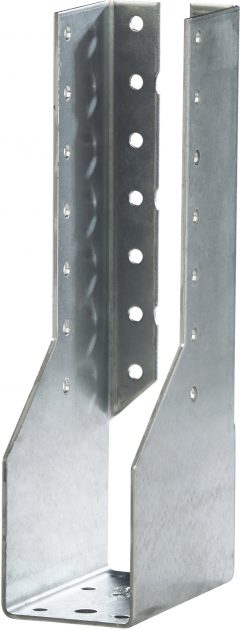

5245197I	2,0	197	45	0,53	25

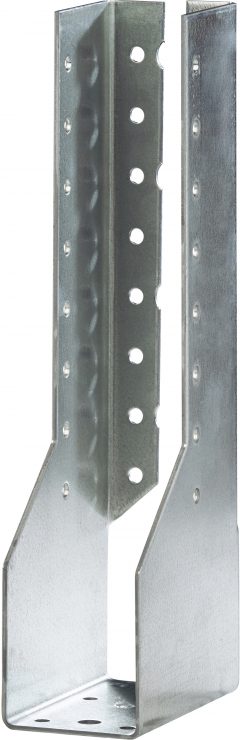

5245228I	2,0	228	45	0,64	25
For wooden beam 48

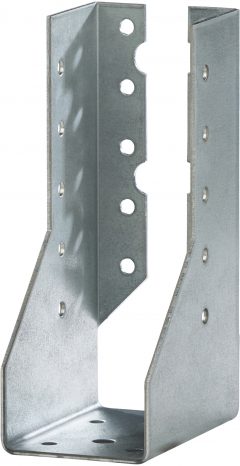

5248136I	2,0	136	48	0,35	50
For wooden beam 51

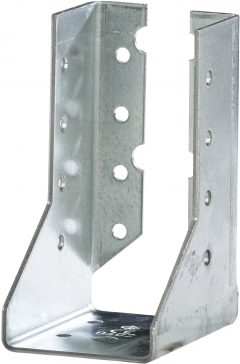

5251105I	2,0	105	51	0,23	50

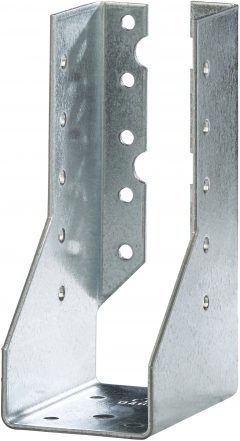

5251135I	2,0	135	51	0,35	50
For wooden beam 56

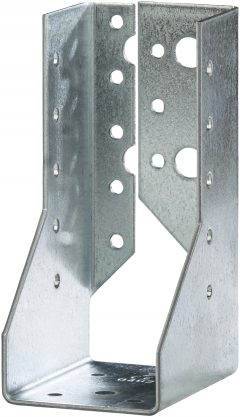

5256132I	2,0	132	56	0,35	50

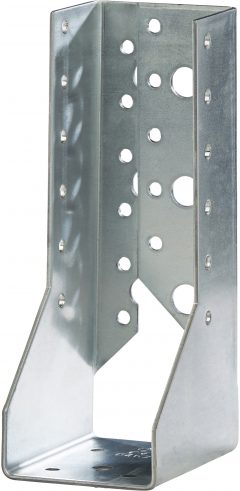

5256162I	2,0	162	56	0,42	50
5256192I	2,0	192	56	0,53	25
5256222I	2,0	222	56	0,62	25
For wooden beam 60
5260100I	2,0	100	60	0,23	50

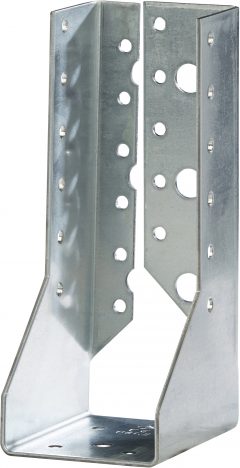

5260160I	2,0	160	60	0,42	50

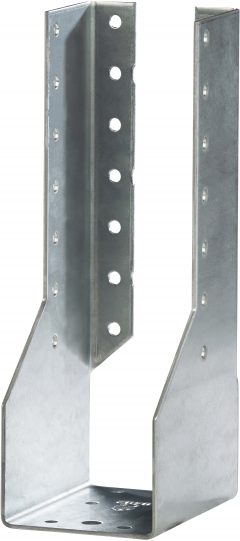

5260190I	2,0	190	60	0,53	25
For wooden beam 76

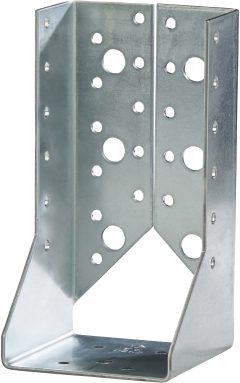

5276152I	2,0	152	76	0,42	50

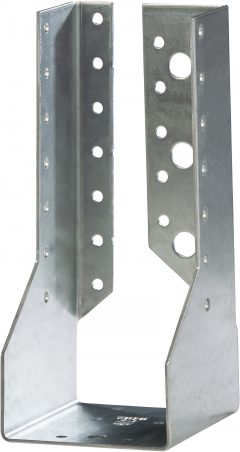

5276182I	2,0	182	76	0,53	25
For wooden beam 80

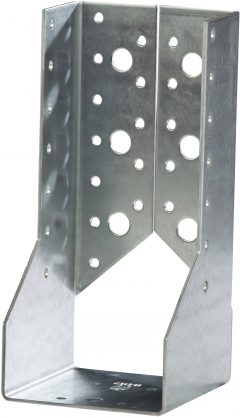

5280180I	2,0	180	80	0,53	50
For wooden beam 90
5290145I	2,0	145	90	0,42	50
5290205I	2,0	205	90	0,65	25
For wooden beam 115
5215162I	2,0	162	115	0,53	25

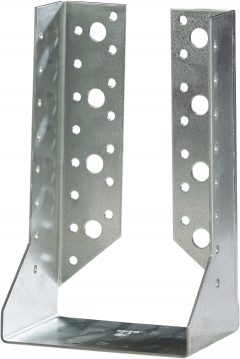

5215190I	2,0	190	115	0,62	25
